Product Summary

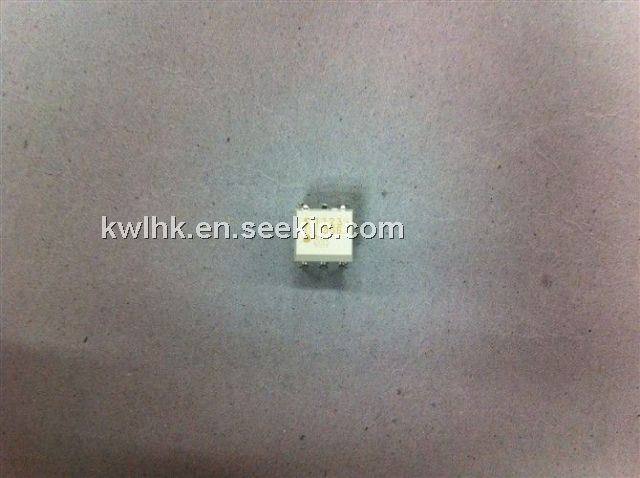

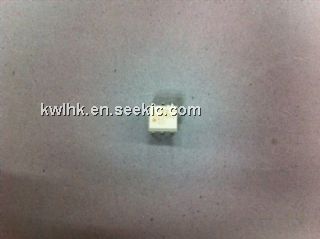

The TLP3052 is a photocoupler GaAs IRED & photo-triac. The TLP3052 consists of a zero voltage crossing turn-on photo-triac optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package. Applications are (1)office machine; (2)household use equipment; (3)triac driver; (4)solid state relay.

Parametrics

TLP3052 absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current (100 μs pulse, 100 pps)IFP: 1 A; (3)Power dissipation PD: 100 mW; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 °C; (6)Off-state output terminal voltage VDRM: 600 V; (7)On-state RMS current Ta = 70°C IT(RMS): 50 mA; (8)Peak on-state current (100μs pulse, 120 pps)ITP: 2 A; (9)Peak nonrepetitive surge current (Pw = 10 ms, DC = 10%)ITSM: 1.2 A; (10)Power dissipation PD: 300 mW; (11)Storage temperature range Tstg: -55~150 °C; (12)Operating temperature range Topr: -40~100 °C; (13)Lead soldering temperature (10 s)Tsol: 260 °C; (14)Total package power dissipation PT: 330 mW.

Features

TLP3052 features: (1)Peak Off-State Voltage : 600 V (min); (2)Trigger LED Current: 10 mA (max); (3)On-State Current: 100 mA (max); (4)Isolation Voltage: 5000 Vrms (min).

Diagrams

TLP3052 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLP3052
TLP3052

Toshiba

Triac & SCR Output Optocouplers 600Vdrm 5000Vrms Non-zero-V turn-on

Data Sheet

Negotiable
TLP3052(D4,N)
TLP3052(D4,N)


PHOTOCOUPLER TRIAC OUT 6-DIP

Data Sheet

Negotiable
TLP3052(D4,S,C,F
TLP3052(D4,S,C,F

Toshiba

Transistor Output Optocouplers Photo-IC 600V VDrm 5000 Vrms 10mA 3V

Data Sheet

0-1200: $0.28
1200-2000: $0.26
2000-5000: $0.24
5000-10000: $0.23
TLP3052(D4,S,C,F)
TLP3052(D4,S,C,F)


PHOTOCOUPLER TRIAC-OUT 6-DIP

Data Sheet

Negotiable
TLP3052(D4,S,C,F,T
TLP3052(D4,S,C,F,T

Toshiba

Triac & SCR Output Optocouplers 600Vdrm 5000Vrms Non-0-volt turn-on

Data Sheet

Negotiable
TLP3052(D4,S,C,F,T)
TLP3052(D4,S,C,F,T)

Toshiba

PHOTOCOUPLER TRIAC-OUT 6-DIP

Data Sheet

1-10: $0.41
10-100: $0.32
100-250: $0.24
250-500: $0.23
500-1000: $0.22
1000-2500: $0.21
2500-5000: $0.21
5000-10000: $0.20
TLP3052(N)
TLP3052(N)


PHOTOCOUPLER TRIAC OUT 6-DIP

Data Sheet

Negotiable
TLP3052(S,C,F)
TLP3052(S,C,F)

Toshiba

Triac & SCR Output Optocouplers Triac cplr, IFT=10mA, VDRM=600V. NZC

Data Sheet

Negotiable
